1. Products
  2. THREAD MILLS
  3. UN / UNF / UNEF
Public Pricelist
Sort By: Featured

UN / UNF / UNEF

  • 40
  • 32
  • 28
  • 24
  • 20
  • 18
  • 16
  • 14
  • 13
  • 12
  • 11
  • 10
  • 9
  • 8
  • 7

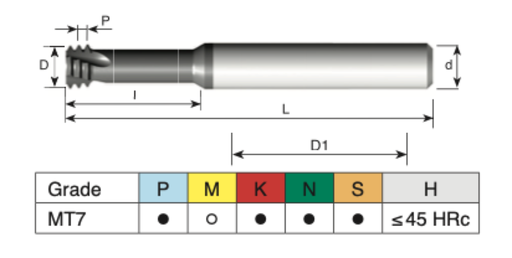

MTS0250C6718UNMT7 .236 DIA .670 REACH CARMEX
IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 18.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.67" (~17.0mm); CUT D: 0.236" (~006.0mm); UNC: (5/16"); UNF: 18; FLUTES: 3; : 2xD1; GRADE: MT7
$ 123.00 123.0 USD
MTS0250C7520UNMT7 .187 DIA .750 REACH CARMEX
IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.75" (~19.0mm); CUT D: 0.187" (~004.7mm); UNC: (1/4); UNF: 20; FLUTES: 3; : 3xD1; GRADE: MT7
$ 130.00 130.0 USD
MTS0250C7528UNMT7 .197 DIA .750 REACH CARMEX
IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 28.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.75" (~19.0mm); CUT D: 0.197" (~005.0mm); UNF: (1/4); FLUTES: 3; : 3xD1; GRADE: MT7
$ 123.00 123.0 USD
MTS0250C9118UNMT7 .236 DIA .910 REACH CARMEX
IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 18.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.91" (~23.1mm); CUT D: 0.236" (~006.0mm); UNC: (5/16"); UNF: 18; FLUTES: 3; : 3xD1; GRADE: MT7
$ 123.00 123.0 USD
MTS03021C1240UNMT7 .083 DIA .470 REACH CARMEX
MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 40.00 TPI; SHANK D: 03.00mm; OAL: 039.00mm (1.5"); NECK LEN: ~11.9mm (0.47"); CUT D: ~002.1mm (0.083"); UNC: 4; FLUTES: 3; : 4xD1; GRADE: MT7
$ 123.00 123.0 USD
MTS03025C1432UNMT7 .100 DIA .580 REACH CARMEX
MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 32.00 TPI; SHANK D: 03.00mm; OAL: 039.00mm (1.5"); NECK LEN: ~14.7mm (0.58"); CUT D: ~002.5mm (0.100"); UNC: 6; FLUTES: 3; : 4xD1; GRADE: MT7
$ 123.00 123.0 USD
MTS0312C8716UNMT7 .264 DIA .870 REACH CARMEX
IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 16.00 TPI; SHANK D: 0.312"; OAL: 2.5" (064.00mm); NECK LEN: 0.87" (~22.1mm); CUT D: 0.264" (~006.7mm); UNC: (3/8"); UNF: 16; FLUTES: 3; : 2xD1; GRADE: MT7
$ 157.00 157.0 USD
MTS0312C9424UNMT7 .260 DIA .940 REACH CARMEX
IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 24.00 TPI; SHANK D: 0.312"; OAL: 2.5" (064.00mm); NECK LEN: 0.94" (~23.9mm); CUT D: 0.260" (~006.6mm); UNF: (5/16"),(3/8"); FLUTES: 3; : 3xD1; GRADE: MT7
$ 157.00 157.0 USD
MTS06021C640UNLMT7 .083 DIA .250 REACH 4.1 OAL CARMEX
MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 40.00 TPI; SHANK D: 06.00mm; OAL: 105.00mm (4.1"); NECK LEN: ~06.3mm (0.25"); CUT D: ~002.1mm (0.083"); UNC: 4; FLUTES: 3; : 2xD1; GRADE: MT7
$ 129.00 129.0 USD
MTS06021C840UNLMT7 .083 DIA .310 REACH 4.1 OAL CARMEX
MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 40.00 TPI; SHANK D: 06.00mm; OAL: 105.00mm (4.1"); NECK LEN: ~07.9mm (0.31"); CUT D: ~002.1mm (0.083"); UNC: 4; FLUTES: 3; : 3xD1; GRADE: MT7
$ 129.00 129.0 USD
MTS06025C1032UNLMT7 .100 DIA .410 REACH 4.1 OAL CARMEX
MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 32.00 TPI; SHANK D: 06.00mm; OAL: 105.00mm (4.1"); NECK LEN: ~10.4mm (0.41"); CUT D: ~002.5mm (0.100"); UNC: 6; FLUTES: 3; : 3xD1; GRADE: MT7
$ 129.00 129.0 USD
MTS06032C1232UNLMT7 .126 DIA .490 REACH 4.1 OAL CARMEX
MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 32.00 TPI; SHANK D: 06.00mm; OAL: 105.00mm (4.1"); NECK LEN: ~12.4mm (0.49"); CUT D: ~003.2mm (0.126"); UNC: 8; FLUTES: 3; : 3xD1; GRADE: MT7
$ 129.00 129.0 USD
MTS06032C1732UNMT7 .126 DIA .690 REACH CARMEX
MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 32.00 TPI; SHANK D: 06.00mm; OAL: 058.00mm (2.3"); NECK LEN: ~17.5mm (0.69"); CUT D: ~003.2mm (0.126"); UNC: 8; FLUTES: 3; : 4xD1; GRADE: MT7
$ 127.00 127.0 USD
MTS06035C1524UNLMT7 .138 DIA .610 REACH 4.1 OAL
SOLID CARBIDE LONG METRIC SHANK MILL-THREAD CUTTING TOOL WITH 3 FLUTES FOR UN THREADING; PITCH: 24.00 TPI; SHANK DIA. (d): 06.00mm; CUTTING DIA. (D): 03.50mm; APPROXIMATE CUTTING LENGTH: 15mm; GRADE: MT7
$ 129.00 129.0 USD
MTS06035C1524UNMT7 .138 DIA .610 REACH CARMEX
MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 24.00 TPI; SHANK D: 06.00mm; OAL: 058.00mm (2.3"); NECK LEN: ~15.5mm (0.61"); CUT D: ~003.5mm (0.138"); UNC: 10,12; FLUTES: 3; : 3xD1; GRADE: MT7
$ 128.00 128.0 USD
MTS06037C1532UNLMT7 .146 DIA .590 REACH 4.1 OAL CARMEX
MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 32.00 TPI; SHANK D: 06.00mm; OAL: 105.00mm (4.1"); NECK LEN: ~15.0mm (0.59"); CUT D: ~003.7mm (0.146"); UNF: 10; FLUTES: 3; : 3xD1; GRADE: MT7
$ 129.00 129.0 USD
MTS06037C2032UNMT7 .146 DIA .790 REACH CARMEX
MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 32.00 TPI; SHANK D: 06.00mm; OAL: 058.00mm (2.3"); NECK LEN: ~20.1mm (0.79"); CUT D: ~003.7mm (0.146"); UNF: 10; FLUTES: 3; : 4xD1; GRADE: MT7
$ 123.00 123.0 USD
MTS06047C1920UNLMT7 .187 DIA .750 REACH 4.1 OAL CARMEX
MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 06.00mm; OAL: 105.00mm (4.1"); NECK LEN: ~19.0mm (0.75"); CUT D: ~004.7mm (0.187"); UNC: (1/4); UNF: 20; FLUTES: 3; : 3xD1; GRADE: MT7
$ 129.00 129.0 USD
MTS0605C1928UNLMT7 .197 DIA .750 REACH 4.1 OAL CARMEX
MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 28.00 TPI; SHANK D: 06.00mm; OAL: 105.00mm (4.1"); NECK LEN: ~19.0mm (0.75"); CUT D: ~005.0mm (0.197"); UNF: (1/4); FLUTES: 3; : 3xD1; GRADE: MT7
$ 129.00 129.0 USD
MTS08067C3016UNMT7 .264 DIA 1.19 REACH CARMEX
MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 16.00 TPI; SHANK D: 08.00mm; OAL: 064.00mm (2.5"); NECK LEN: ~30.2mm (01.19"); CUT D: ~006.7mm (0.264"); UNC: (3/8"); UNF: 16; FLUTES: 3; : 3xD1; GRADE: MT7
$ 157.00 157.0 USD
