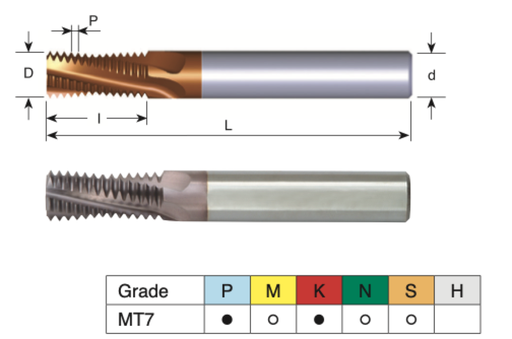

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 13.00 TPI; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.313" (~008.0mm); CUT L: 0.88" (~22.4mm); UNC: (1/2); FLUTES: 3; GRADE: MT7

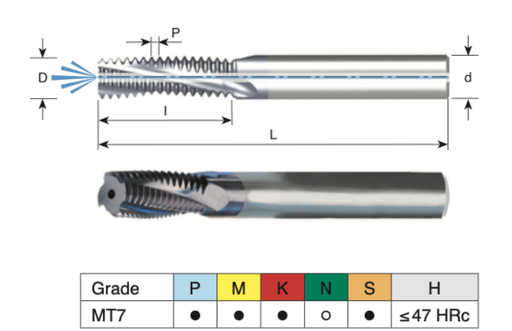

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 13.00 TPI; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.362" (~009.2mm); CUT L: 0.89" (~22.6mm); UNC: (1/2); FLUTES: 3; GRADE: MT7

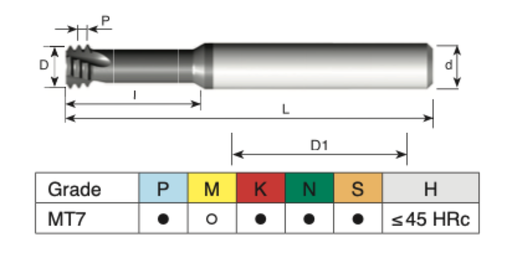

MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 13.00 TPI; SHANK D: 10.00mm; OAL: 073.00mm (~2.87"); NECK LEN: 40.10mm (~1.58"); CUT D: 09.20mm (~0.36"); UNC: (1/2); FLUTES: 3; GRADE: MT7
