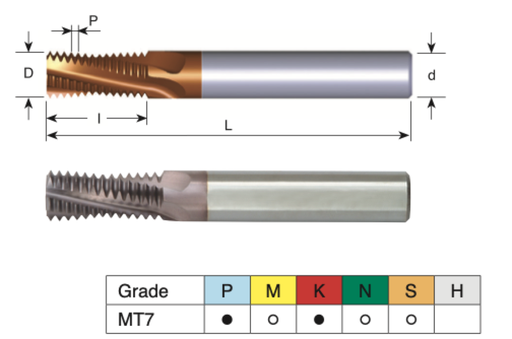

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 10.00 TPI; SHANK D: 0.500"; OAL: 3.5" (089.00mm); CUT D: 0.472" (~012.0mm); CUT L: 1.35" (~34.3mm); UNC: (3/4); FLUTES: 3; GRADE: MT7

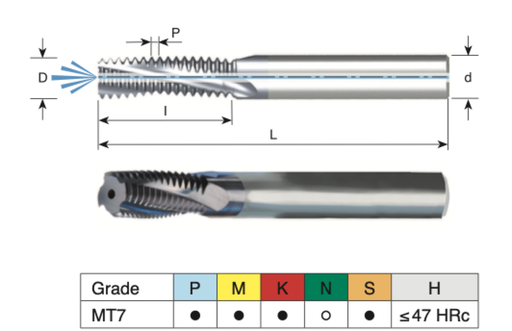

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 10.00 TPI; SHANK D: 0.625"; OAL: 4.4" (~112mm); CUT D: 0.567" (~014.4mm); CUT L: 1.35" (~34.3mm); UNC: (3/4); FLUTES: 4; GRADE: MT7

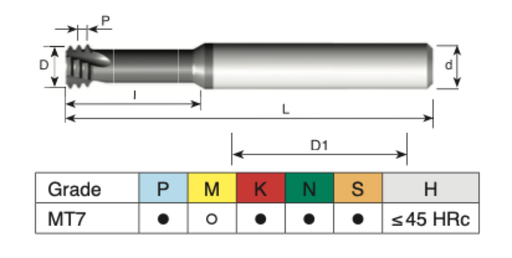

MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 10.00 TPI; SHANK D: 16.00mm; OAL: 105.00mm (4.1"); NECK LEN: ~59.7mm (02.35"); CUT D: ~014.4mm (0.567"); UNC: (3/4"); UNF: 10; FLUTES: 4; : 3xD1; GRADE: MT7
