18 | VF-Override

MT0250C0618UNMT7 .197 DIA .580 LOC CARMEX

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 18.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.197" (~005.0mm); CUT L: 0.58" (~14.7mm); UNC: (5/16); FLUTES: 3; GRADE: MT7

$ 175.00

MT0375D1018UNMT7 .375 DIA 1.030 LOC CARMEX

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 18.00 TPI; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.375" (~009.5mm); CUT L: 1.03" (~26.2mm); UNF: (9/16) - (5/8); FLUTES: 4; : 1(1/8) - 1(5/8); GRADE: MT7

$ 200.00

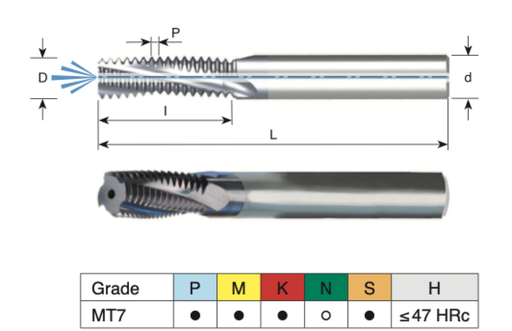

MTB0250C0518UNMT7 .220 DIA .580 LOC CARMEX

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 18.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.220" (~005.6mm); CUT L: 0.58" (~14.7mm); UNC: (5/16); FLUTES: 3; GRADE: MT7

$ 175.00

MTB0500D1018UNMT7 .445 DIA 1.030 LOC

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 18.00 TPI; SHANK D: 0.500"; OAL: 4.000" (101.00mm); CUT D: 0.445" (~011.3mm); CUT L: 1.03" (~26.2mm); UNF: (9/16) - (5/8); FLUTES: 4; : 1(1/8) - 1(5/8); GRADE: MT7

$ 212.00

MTS0250C6718UNMT7 .236 DIA .670 REACH CARMEX

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 18.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.67" (~17.0mm); CUT D: 0.236" (~006.0mm); UNC: (5/16"); UNF: 18; FLUTES: 3; : 2xD1; GRADE: MT7

$ 123.00

MTS0250C9118UNMT7 .236 DIA .910 REACH CARMEX

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 18.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.91" (~23.1mm); CUT D: 0.236" (~006.0mm); UNC: (5/16"); UNF: 18; FLUTES: 3; : 3xD1; GRADE: MT7

$ 139.50

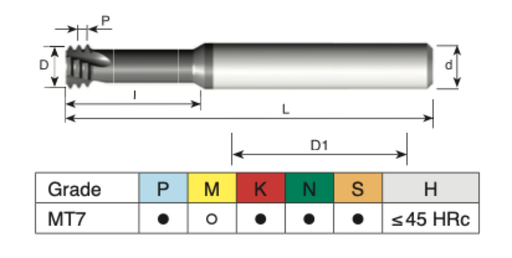

MTS1212D4918UNMT7 .472 DIA 1.93 REACH CARMEX

MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 18.00 TPI; SHANK D: 12.00mm; OAL: 105.00mm (4.1"); NECK LEN: ~49.0mm (01.93"); CUT D: ~012.0mm (0.472"); UNF: (5/8"); FLUTES: 4; : 3xD1; GRADE: MT7

$ 184.00
