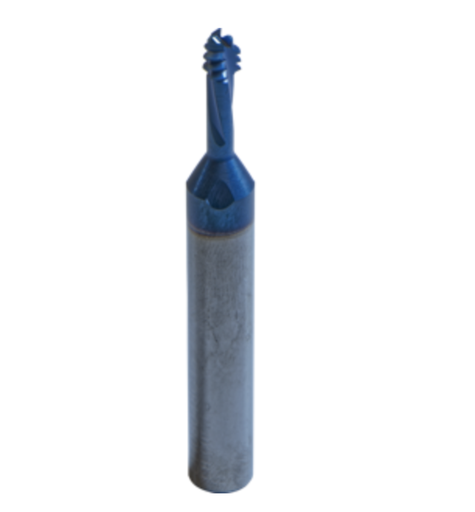

M-SHNK FOR UN INT-RH&LH THD;P:20TPI;SHNK:8mm;OAL:64mm(2.5");NECKLN:~15.5mm(.61");CUT D:~4.8mm(.189");CHMF-TRD:~1.2mm(.049");CH H:~.4mm(.016");A:45D;UN:(1/4)-(3/8);UNC:(1/4)-(3/8);UNF:(1/4)-(3/8);UNEF:(1/4)-(3/8);UNS:(1/4)-(3/8);FLUTE:3;2xD1;GR:MT11;LH M04

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.50mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.087" (~002.21mm); CUT L: 0.21" (05.3mm); M COARSE: 3; M FINE: 4; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 32.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.126" (~003.2mm); CUT L: 0.27" (~06.9mm); UNC: 8; UNF: 10; FLUTES: 3; : 12; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 40.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.098" (~002.5mm); CUT L: 0.24" (~06.1mm); UNC: 5; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.70mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.122" (~003.1mm); CUT L: 0.29" (~07.4mm); M COARSE: 4; M FINE: 5; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.50mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.150" (~003.8mm); CUT L: 0.41" (~10.4mm); M FINE: 5; FLUTES: 3; GRADE: MT7;

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.75mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.177" (~004.5mm); CUT L: 0.40" (~10.2mm); M FINE: 6; FLUTES: 3; GRADE: MT7;

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.80mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.142" (~003.6mm); CUT L: 0.36" (~09.1mm); M COARSE: 5; M FINE: 6; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.00mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.157" (~004.0mm); CUT L: 0.41" (~10.4mm); M COARSE: 6; M FINE: 7; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 28.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.157" (~004.0mm); CUT L: 0.45" (~11.4mm); UNF: (1/4); FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.00mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.236" (~006.0mm); CUT L: 0.49" (~12.4mm); M FINE: 9; FLUTES: 3; GRADE: MT7;

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.177" (~004.5mm); CUT L: 0.48" (~12.2mm); UNC: (1/4); FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 28.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.236" (~006.0mm); CUT L: 0.57" (~14.5mm); FLUTES: 3; : (7/16) - (1/2); GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.00mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.157" (~004.0mm); CUT L: 0.57" (~14.5mm); M COARSE: 6; M FINE: 7; FLUTES: 3; GRADE: MT7

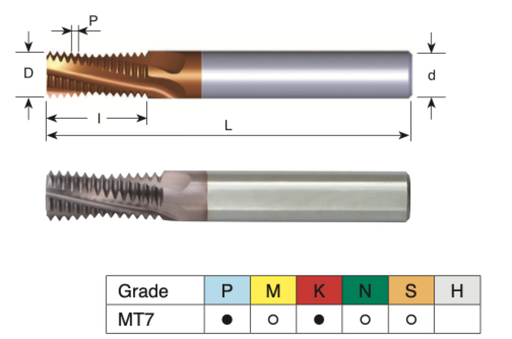

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.25mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.197" (~005.0mm); CUT L: 0.57" (~14.5mm); M COARSE: 8; M FINE: 10; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 18.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.197" (~005.0mm); CUT L: 0.58" (~14.7mm); UNC: (5/16); FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.25mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.197" (~005.0mm); CUT L: 0.76" (~19.3mm); M COARSE: 8; M FINE: 10; FLUTES: 3; GRADE: MT7

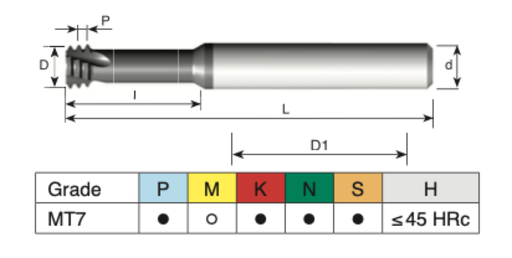

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 16.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.236" (~006.0mm); CUT L: 0.66" (~16.8mm); UNC: (3/8); FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.50mm; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.276" (~007.0mm); CUT L: 0.68" (~17.3mm); M COARSE: 0; M FINE: 12; FLUTES: 3; GRADE: MT7
