M-SHNK FOR UN INT-RH&LH THD;P:20TPI;SHNK:8mm;OAL:64mm(2.5");NECKLN:~15.5mm(.61");CUT D:~4.8mm(.189");CHMF-TRD:~1.2mm(.049");CH H:~.4mm(.016");A:45D;UN:(1/4)-(3/8);UNC:(1/4)-(3/8);UNF:(1/4)-(3/8);UNEF:(1/4)-(3/8);UNS:(1/4)-(3/8);FLUTE:3;2xD1;GR:MT11;LH M04

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.177" (~004.5mm); CUT L: 0.48" (~12.2mm); UNC: (1/4); FLUTES: 3; GRADE: MT7

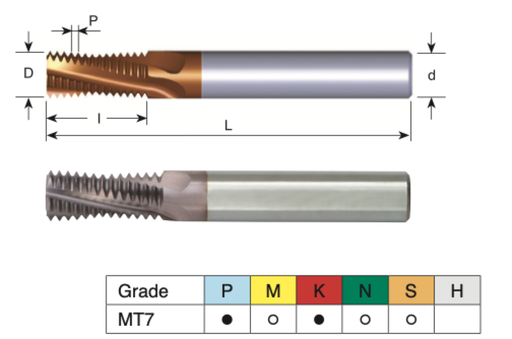

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.276" (~007.0mm); CUT L: 0.83" (~21.1mm); UNF: (7/16) - (1/2); FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.500"; OAL: 3.5" (089.00mm); CUT D: 0.472" (~012.0mm); CUT L: 1.08" (~27.4mm); FLUTES: 5; : (3/4) - 1; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.185" (~004.7mm); CUT L: 0.48" (~12.2mm); UNC: (1/4); FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.312" (~007.9mm); CUT L: 0.83" (~21.1mm); UNF: (7/16); FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.375" (~009.5mm); CUT L: 0.88" (~22.4mm); UNF: (1/2); FLUTES: 4; GRADE: MT7

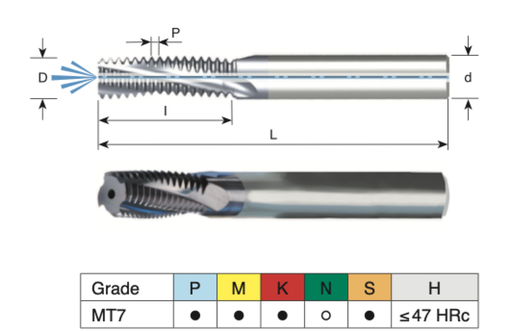

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.500"; OAL: 4.000" (101.00mm); CUT D: 0.500" (~012.7mm); CUT L: 1.07" (~27.2mm); FLUTES: 5; : (3/4) - 1; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.55" (~14.0mm); CUT D: 0.187" (~004.7mm); UNC: (1/4); UNF: 20; FLUTES: 3; : 2xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.75" (~19.0mm); CUT D: 0.187" (~004.7mm); UNC: (1/4); UNF: 20; FLUTES: 3; : 3xD1; GRADE: MT7

MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 06.00mm; OAL: 105.00mm (4.1"); NECK LEN: ~19.0mm (0.75"); CUT D: ~004.7mm (0.187"); UNC: (1/4); UNF: 20; FLUTES: 3; : 3xD1; GRADE: MT7

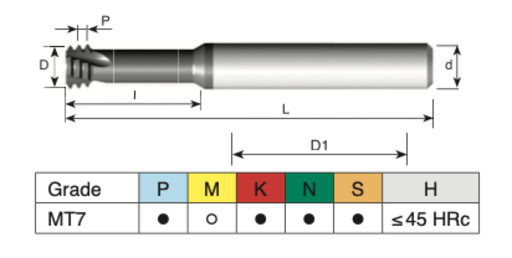

MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 08.00mm; OAL: 064.00mm (2.5"); NECK LEN: ~34.5mm (01.36"); CUT D: ~008.0mm (0.315"); UNF: (7/16"); FLUTES: 3; : 3xD1; GRADE: MT7
