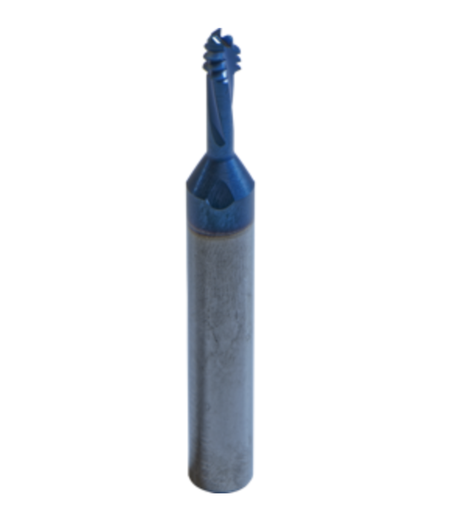

M-SHNK FOR UN INT-RH&LH THD;P:20TPI;SHNK:8mm;OAL:64mm(2.5");NECKLN:~15.5mm(.61");CUT D:~4.8mm(.189");CHMF-TRD:~1.2mm(.049");CH H:~.4mm(.016");A:45D;UN:(1/4)-(3/8);UNC:(1/4)-(3/8);UNF:(1/4)-(3/8);UNEF:(1/4)-(3/8);UNS:(1/4)-(3/8);FLUTE:3;2xD1;GR:MT11;LH M04

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 32.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.126" (~003.2mm); CUT L: 0.27" (~06.9mm); UNC: 8; UNF: 10; FLUTES: 3; : 12; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 40.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.098" (~002.5mm); CUT L: 0.24" (~06.1mm); UNC: 5; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 28.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.157" (~004.0mm); CUT L: 0.45" (~11.4mm); UNF: (1/4); FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.177" (~004.5mm); CUT L: 0.48" (~12.2mm); UNC: (1/4); FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 28.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.236" (~006.0mm); CUT L: 0.57" (~14.5mm); FLUTES: 3; : (7/16) - (1/2); GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 18.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.197" (~005.0mm); CUT L: 0.58" (~14.7mm); UNC: (5/16); FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 16.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.236" (~006.0mm); CUT L: 0.66" (~16.8mm); UNC: (3/8); FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 14.00 TPI; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.276" (~007.0mm); CUT L: 0.82" (~20.8mm); UNC: (7/16); FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.276" (~007.0mm); CUT L: 0.83" (~21.1mm); UNF: (7/16) - (1/2); FLUTES: 3; GRADE: MT7

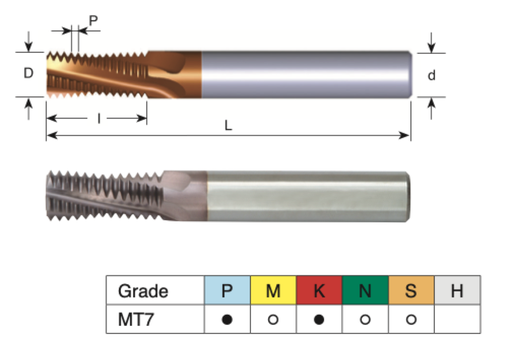

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 24.00 TPI; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.276" (~007.0mm); CUT L: 0.81" (~20.6mm); UNF: (3/8); FLUTES: 3; : (9/16) - (5/8); GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 13.00 TPI; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.313" (~008.0mm); CUT L: 0.88" (~22.4mm); UNC: (1/2); FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 12.00 TPI; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.375" (~009.5mm); CUT L: 1.04" (~26.4mm); UNC: (9/16); FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 11.00 TPI; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.375" (~009.5mm); CUT L: 1.14" (~29.0mm); UNC: (5/8); FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 18.00 TPI; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.375" (~009.5mm); CUT L: 1.03" (~26.2mm); UNF: (9/16) - (5/8); FLUTES: 4; : 1(1/8) - 1(5/8); GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 10.00 TPI; SHANK D: 0.500"; OAL: 3.5" (089.00mm); CUT D: 0.472" (~012.0mm); CUT L: 1.35" (~34.3mm); UNC: (3/4); FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 16.00 TPI; SHANK D: 0.500"; OAL: 3.5" (089.00mm); CUT D: 0.472" (~012.0mm); CUT L: 1.22" (~31.0mm); UNF: (3/4); FLUTES: 4; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.500"; OAL: 3.5" (089.00mm); CUT D: 0.472" (~012.0mm); CUT L: 1.08" (~27.4mm); FLUTES: 5; : (3/4) - 1; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 09.00 TPI; SHANK D: 0.625"; OAL: 4.000" (101.00mm); CUT D: 0.591" (~015.0mm); CUT L: 1.50" (~38.1mm); UNC: (7/8); FLUTES: 3; GRADE: MT7
