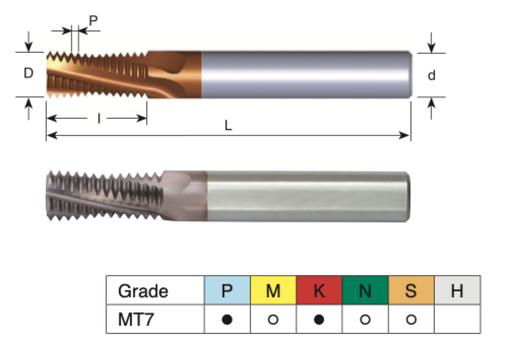

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 24.00 TPI; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.276" (~007.0mm); CUT L: 0.81" (~20.6mm); UNF: (3/8); FLUTES: 3; : (9/16) - (5/8); GRADE: MT7

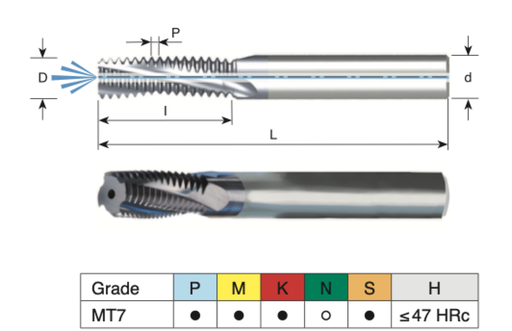

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 24.00 TPI; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.260" (~006.6mm); CUT L: 0.56" (~14.2mm); UNF: (5/16); FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 24.00 TPI; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.312" (~007.9mm); CUT L: 0.81" (~20.6mm); UNF: (3/8); FLUTES: 4; : (9/16) - (5/8); GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 24.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.42" (~10.7mm); CUT D: 0.138" (~003.5mm); UNC: 10,12; FLUTES: 3; : 2xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 24.00 TPI; SHANK D: 0.312"; OAL: 2.5" (064.00mm); NECK LEN: 0.94" (~23.9mm); CUT D: 0.260" (~006.6mm); UNF: (5/16"),(3/8"); FLUTES: 3; : 3xD1; GRADE: MT7

SOLID CARBIDE LONG METRIC SHANK MILL-THREAD CUTTING TOOL WITH 3 FLUTES FOR UN THREADING; PITCH: 24.00 TPI; SHANK DIA. (d): 06.00mm; CUTTING DIA. (D): 03.50mm; APPROXIMATE CUTTING LENGTH: 15mm; GRADE: MT7

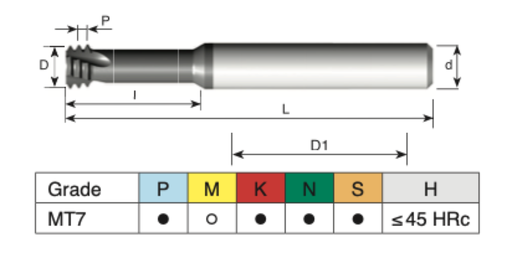

MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 24.00 TPI; SHANK D: 06.00mm; OAL: 058.00mm (2.3"); NECK LEN: ~15.5mm (0.61"); CUT D: ~003.5mm (0.138"); UNC: 10,12; FLUTES: 3; : 3xD1; GRADE: MT7
