IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.50mm; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.306" (~007.8mm); CUT L: 0.98" (~24.9mm); M COARSE: 10; M FINE: 12; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.75mm; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.313" (~008.0mm); CUT L: 1.14" (~29.0mm); M COARSE: 12; M FINE: 14; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.50mm; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.276" (~007.0mm); CUT L: 0.98" (~24.9mm); M COARSE: 10; M FINE: 12; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.25mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.197" (~005.0mm); CUT L: 0.76" (~19.3mm); M COARSE: 8; M FINE: 10; FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.75mm; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.354" (~009.0mm); CUT L: 1.14" (~29.0mm); M COARSE: 12; M FINE: 12; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.00mm; SHANK D: 0.375"; OAL: 4.000" (101.00mm); CUT D: 0.375" (~009.5mm); CUT L: 1.54" (~39.1mm); M COARSE: 16; M FINE: 17; FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.00mm; SHANK D: 0.500"; OAL: 4.000" (101.00mm); CUT D: 0.465" (~011.8mm); CUT L: 1.54" (~39.1mm); M COARSE: 16; M FINE: 17; FLUTES: 4; GRADE: MT7

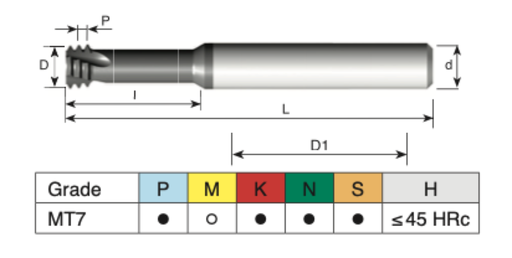

MET-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 10.00 TPI; SHANK D: 16.00mm; OAL: 105.00mm (4.1"); NECK LEN: ~59.7mm (02.35"); CUT D: ~014.4mm (0.567"); UNC: (3/4"); UNF: 10; FLUTES: 4; : 3xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.50mm; SHANK D: 0.625"; OAL: 4.000" (101.00mm); NECK LEN: 01.69" (~42.9mm); CUT D: 0.591" (~015.0mm); M COARSE: M20; FLUTES: 5; : 2xD1; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 10.00 TPI; SHANK D: 0.625"; OAL: 4.4" (~112mm); CUT D: 0.567" (~014.4mm); CUT L: 1.35" (~34.3mm); UNC: (3/4); FLUTES: 4; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.50mm; SHANK D: 0.625"; OAL: 4.000" (101.00mm); CUT D: 0.625" (~015.9mm); CUT L: 1.33" (~33.8mm); M FINE: 20; FLUTES: 6; GRADE: MT7;

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 12.00 TPI; SHANK D: 0.625"; OAL: 4.4" (~112mm); CUT D: 0.625" (~015.9mm); CUT L: 1.63" (~41.4mm); UNF: 1 - 1(1/2); FLUTES: 5; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.50mm; SHANK D: 0.625"; OAL: 4.000" (101.00mm); CUT D: 0.591" (~015.0mm); CUT L: 1.33" (~33.8mm); M COARSE: 20; M FINE: 22; FLUTES: 5; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 09.00 TPI; SHANK D: 0.625"; OAL: 4.4" (~112mm); CUT D: 0.625" (~015.9mm); CUT L: 1.50" (~38.1mm); UNC: (7/8); FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.50mm; SHANK D: 0.625"; OAL: 4.000" (101.00mm); CUT D: 0.625" (~015.9mm); CUT L: 1.33" (~33.8mm); M FINE: 20; FLUTES: 6; GRADE: MT7;

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 12.00 TPI; SHANK D: 0.625"; OAL: 4.000" (101.00mm); CUT D: 0.625" (~015.9mm); CUT L: 1.63" (~41.4mm); UNF: 1 - 1(1/2); FLUTES: 5; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 14.00 TPI; SHANK D: 0.625"; OAL: 4.000" (101.00mm); CUT D: 0.591" (~015.0mm); CUT L: 1.46" (~37.1mm); UNF: (7/8); FLUTES: 5; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.50mm; SHANK D: 0.625"; OAL: 4.000" (101.00mm); CUT D: 0.551" (~014.0mm); CUT L: 1.33" (~33.8mm); M COARSE: 20; M FINE: 22; FLUTES: 4; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 08.00 TPI; SHANK D: 0.625"; OAL: 4.000" (101.00mm); CUT D: 0.625" (~015.9mm); CUT L: 1.69" (~42.9mm); UNC: 1; FLUTES: 3; GRADE: MT7
