IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 18.00 TPI; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.375" (~009.5mm); CUT L: 1.03" (~26.2mm); UNF: (9/16) - (5/8); FLUTES: 4; : 1(1/8) - 1(5/8); GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.50mm; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.375" (~009.5mm); CUT L: 0.86" (~21.8mm); M FINE: 14; FLUTES: 4; GRADE: MT7;

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.00mm; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.375" (~009.5mm); CUT L: 1.06" (~26.9mm); M COARSE: 16; M FINE: 17; FLUTES: 3; GRADE: MT7

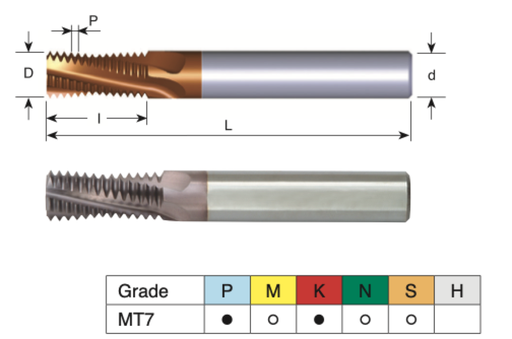

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 11.00 TPI; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.375" (~009.5mm); CUT L: 1.14" (~29.0mm); UNC: (5/8); FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 12.00 TPI; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.375" (~009.5mm); CUT L: 1.04" (~26.4mm); UNC: (9/16); FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.25mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.249" (~006.3mm); CUT L: 0.76" (~19.3mm); M COARSE: 8; M FINE: 10; FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.00mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.181" (~004.6mm); CUT L: 0.57" (~14.5mm); M COARSE: 6; M FINE: 7; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.00mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.157" (~004.0mm); CUT L: 0.57" (~14.5mm); M COARSE: 6; M FINE: 7; FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.500"; OAL: 4.000" (101.00mm); CUT D: 0.500" (~012.7mm); CUT L: 1.07" (~27.2mm); FLUTES: 5; : (3/4) - 1; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 16.00 TPI; SHANK D: 0.500"; OAL: 4.000" (101.00mm); CUT D: 0.500" (~012.7mm); CUT L: 1.22" (~31.0mm); UNF: (3/4); FLUTES: 4; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.00mm; SHANK D: 0.500"; OAL: 4.000" (101.00mm); CUT D: 0.465" (~011.8mm); CUT L: 1.06" (~26.9mm); M COARSE: 16; M FINE: 17; FLUTES: 4; GRADE: MT7

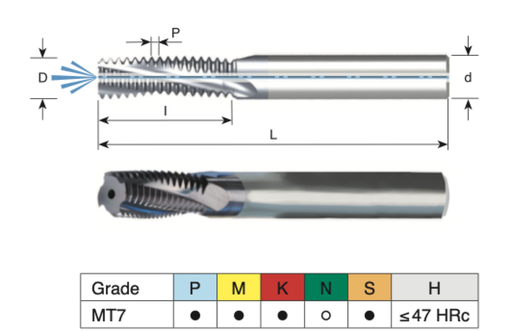

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 18.00 TPI; SHANK D: 0.500"; OAL: 4.000" (101.00mm); CUT D: 0.445" (~011.3mm); CUT L: 1.03" (~26.2mm); UNF: (9/16) - (5/8); FLUTES: 4; : 1(1/8) - 1(5/8); GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.50mm; SHANK D: 0.500"; OAL: 4.000" (101.00mm); CUT D: 0.500" (~012.7mm); CUT L: 1.04" (~26.4mm); M FINE: 16; FLUTES: 4; GRADE: MT7;

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 11.00 TPI; SHANK D: 0.500"; OAL: 4.4" (~112mm); CUT D: 0.449" (~011.4mm); CUT L: 1.14" (~29.0mm); UNC: (5/8); FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 12.00 TPI; SHANK D: 0.500"; OAL: 4.4" (~112mm); CUT D: 0.413" (~010.5mm); CUT L: 1.04" (~26.4mm); UNC: (9/16); FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.500"; OAL: 3.5" (089.00mm); CUT D: 0.472" (~012.0mm); CUT L: 1.08" (~27.4mm); FLUTES: 5; : (3/4) - 1; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 16.00 TPI; SHANK D: 0.500"; OAL: 3.5" (089.00mm); CUT D: 0.472" (~012.0mm); CUT L: 1.22" (~31.0mm); UNF: (3/4); FLUTES: 4; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.00mm; SHANK D: 0.500"; OAL: 3.5" (089.00mm); CUT D: 0.472" (~012.0mm); CUT L: 1.06" (~26.9mm); M FINE: 18; FLUTES: 4; GRADE: MT7;

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 10.00 TPI; SHANK D: 0.500"; OAL: 3.5" (089.00mm); CUT D: 0.472" (~012.0mm); CUT L: 1.35" (~34.3mm); UNC: (3/4); FLUTES: 3; GRADE: MT7

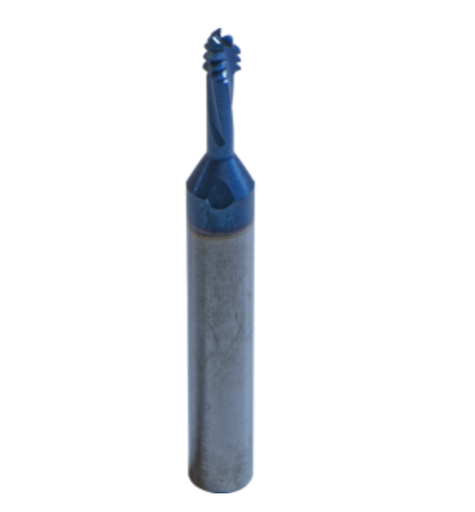

M-SHNK FOR UN INT-RH&LH THD;P:20TPI;SHNK:8mm;OAL:64mm(2.5");NECKLN:~15.5mm(.61");CUT D:~4.8mm(.189");CHMF-TRD:~1.2mm(.049");CH H:~.4mm(.016");A:45D;UN:(1/4)-(3/8);UNC:(1/4)-(3/8);UNF:(1/4)-(3/8);UNEF:(1/4)-(3/8);UNS:(1/4)-(3/8);FLUTE:3;2xD1;GR:MT11;LH M04
