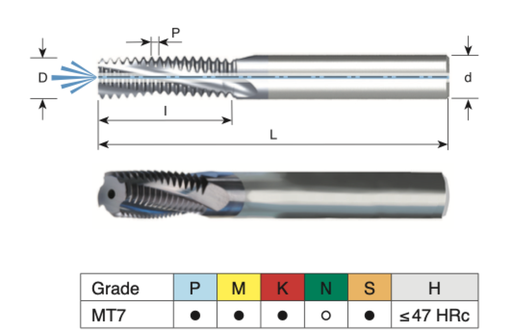

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.375" (~009.5mm); CUT L: 0.88" (~22.4mm); UNF: (1/2); FLUTES: 4; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 12.00 TPI; SHANK D: 0.500"; OAL: 4.4" (~112mm); CUT D: 0.413" (~010.5mm); CUT L: 1.04" (~26.4mm); UNC: (9/16); FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 11.00 TPI; SHANK D: 0.500"; OAL: 4.4" (~112mm); CUT D: 0.449" (~011.4mm); CUT L: 1.14" (~29.0mm); UNC: (5/8); FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.50mm; SHANK D: 0.500"; OAL: 4.000" (101.00mm); CUT D: 0.500" (~012.7mm); CUT L: 1.04" (~26.4mm); M FINE: 16; FLUTES: 4; GRADE: MT7;

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 18.00 TPI; SHANK D: 0.500"; OAL: 4.000" (101.00mm); CUT D: 0.445" (~011.3mm); CUT L: 1.03" (~26.2mm); UNF: (9/16) - (5/8); FLUTES: 4; : 1(1/8) - 1(5/8); GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.00mm; SHANK D: 0.500"; OAL: 4.000" (101.00mm); CUT D: 0.465" (~011.8mm); CUT L: 1.06" (~26.9mm); M COARSE: 16; M FINE: 17; FLUTES: 4; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 16.00 TPI; SHANK D: 0.500"; OAL: 4.000" (101.00mm); CUT D: 0.500" (~012.7mm); CUT L: 1.22" (~31.0mm); UNF: (3/4); FLUTES: 4; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.00mm; SHANK D: 0.500"; OAL: 4.000" (101.00mm); CUT D: 0.465" (~011.8mm); CUT L: 1.54" (~39.1mm); M COARSE: 16; M FINE: 17; FLUTES: 4; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.500"; OAL: 4.000" (101.00mm); CUT D: 0.500" (~012.7mm); CUT L: 1.07" (~27.2mm); FLUTES: 5; : (3/4) - 1; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 09.00 TPI; SHANK D: 0.625"; OAL: 4.4" (~112mm); CUT D: 0.625" (~015.9mm); CUT L: 1.50" (~38.1mm); UNC: (7/8); FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 10.00 TPI; SHANK D: 0.625"; OAL: 4.4" (~112mm); CUT D: 0.567" (~014.4mm); CUT L: 1.35" (~34.3mm); UNC: (3/4); FLUTES: 4; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.50mm; SHANK D: 0.625"; OAL: 4.000" (101.00mm); CUT D: 0.591" (~015.0mm); CUT L: 1.33" (~33.8mm); M COARSE: 20; M FINE: 22; FLUTES: 5; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 12.00 TPI; SHANK D: 0.625"; OAL: 4.4" (~112mm); CUT D: 0.625" (~015.9mm); CUT L: 1.63" (~41.4mm); UNF: 1 - 1(1/2); FLUTES: 5; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.50mm; SHANK D: 0.625"; OAL: 4.000" (101.00mm); CUT D: 0.591" (~015.0mm); CUT L: 1.92" (~48.8mm); M COARSE: 20; M FINE: 22; FLUTES: 5; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.50mm; SHANK D: 0.625"; OAL: 4.000" (101.00mm); CUT D: 0.625" (~015.9mm); CUT L: 1.33" (~33.8mm); M FINE: 20; FLUTES: 6; GRADE: MT7;

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 03.00mm; SHANK D: 0.750"; OAL: 4.000" (101.00mm); CUT D: 0.709" (~018.0mm); CUT L: 1.59" (~40.4mm); M COARSE: 24; M FINE: 25; FLUTES: 4; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 08.00 TPI; SHANK D: 0.750"; OAL: 4.000" (101.00mm); CUT D: 0.750" (~019.0mm); CUT L: 1.69" (~42.9mm); UNC: 1; FLUTES: 4; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 03.00mm; SHANK D: 0.750"; OAL: 4.000" (101.00mm); CUT D: 0.750" (~019.1mm); CUT L: 1.71" (~43.4mm); M COARSE: 27; M FINE: 27; FLUTES: 4; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 07.00 TPI; SHANK D: 0.750"; OAL: 4.000" (101.00mm); CUT D: 0.750" (~019.0mm); CUT L: 1.78" (~45.2mm); UNC: 1(1/8) - 1(1/4); FLUTES: 4; GRADE: MT7
