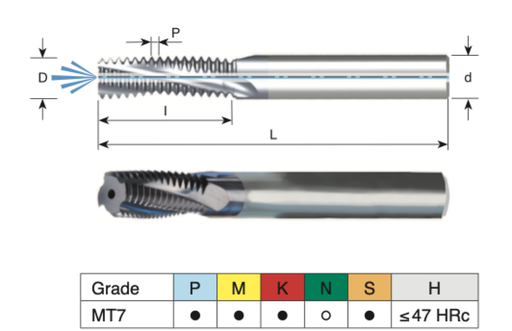

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.00mm; SHANK D: 0.750"; OAL: 4.000" (101.00mm); CUT D: 0.750" (~019.1mm); CUT L: 1.61" (~40.9mm); M FINE: 26; FLUTES: 6; GRADE: MT7;

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.40mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.18" (~04.6mm); CUT D: 0.060" (~001.5mm); M COARSE: M2; FLUTES: 3; : 2xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 40.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.25" (~06.3mm); CUT D: 0.083" (~002.1mm); UNC: 4; FLUTES: 3; : 2xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.50mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.26" (~06.6mm); CUT D: 0.093" (~002.4mm); M COARSE: M3; FLUTES: 3; : 2xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 32.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.28" (~07.1mm); CUT D: 0.100" (~002.5mm); UNC: 6; FLUTES: 3; : 2xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 40.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.31" (~07.9mm); CUT D: 0.083" (~002.1mm); UNC: 4; FLUTES: 3; : 3xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.70mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.35" (~08.9mm); CUT D: 0.122" (~003.1mm); M COARSE: M4; FLUTES: 3; : 2xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.50mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.37" (~09.4mm); CUT D: 0.093" (~002.4mm); M COARSE: M3; FLUTES: 3; : 3xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 32.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.37" (~09.4mm); CUT D: 0.126" (~003.2mm); UNC: 8; FLUTES: 3; : 2xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 32.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.41" (~10.4mm); CUT D: 0.100" (~002.5mm); UNC: 6; FLUTES: 3; : 3xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 32.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.41" (~10.4mm); CUT D: 0.146" (~003.7mm); UNF: 10; FLUTES: 3; : 2xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 24.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.42" (~10.7mm); CUT D: 0.138" (~003.5mm); UNC: 10,12; FLUTES: 3; : 2xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.70mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.49" (~12.4mm); CUT D: 0.122" (~003.1mm); M COARSE: M4; FLUTES: 3; : 3xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.80mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.49" (~12.4mm); CUT D: 0.150" (~003.8mm); M COARSE: M5; FLUTES: 3; : 2xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 32.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.49" (~12.4mm); CUT D: 0.126" (~003.2mm); UNC: 8; FLUTES: 3; : 3xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.00mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.55" (~14.0mm); CUT D: 0.183" (~004.6mm); M COARSE: M6; M FINE: M8; FLUTES: 3; : 2xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.55" (~14.0mm); CUT D: 0.187" (~004.7mm); UNC: (1/4); UNF: 20; FLUTES: 3; : 2xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 32.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.59" (~15.0mm); CUT D: 0.146" (~003.7mm); UNF: 10; FLUTES: 3; : 3xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.80mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.63" (~16.0mm); CUT D: 0.150" (~003.8mm); M COARSE: M5; FLUTES: 3; : 3xD1; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 18.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); NECK LEN: 0.67" (~17.0mm); CUT D: 0.236" (~006.0mm); UNC: (5/16"); UNF: 18; FLUTES: 3; : 2xD1; GRADE: MT7
