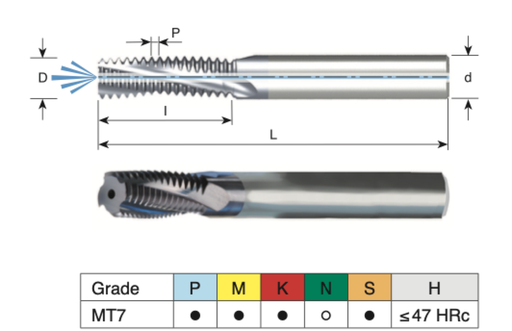

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 18.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.220" (~005.6mm); CUT L: 0.58" (~14.7mm); UNC: (5/16); FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 28.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.250" (~006.3mm); CUT L: 0.56" (~14.2mm); FLUTES: 3; : (7/16) - (1/2); GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 32.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.250" (~006.3mm); CUT L: 0.58" (~14.7mm); FLUTES: 3; : (5/16); GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.00mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.181" (~004.6mm); CUT L: 0.57" (~14.5mm); M COARSE: 6; M FINE: 7; FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.25mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.249" (~006.3mm); CUT L: 0.76" (~19.3mm); M COARSE: 8; M FINE: 10; FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 24.00 TPI; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.260" (~006.6mm); CUT L: 0.56" (~14.2mm); UNF: (5/16); FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.50mm; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.306" (~007.8mm); CUT L: 0.67" (~17.0mm); M COARSE: 10; M FINE: 12; FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 16.00 TPI; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.264" (~006.7mm); CUT L: 0.66" (~16.8mm); UNC: (3/8); FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 14.00 TPI; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.303" (~007.7mm); CUT L: 0.82" (~20.8mm); UNC: (7/16); FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.312" (~007.9mm); CUT L: 0.83" (~21.1mm); UNF: (7/16); FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.50mm; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.306" (~007.8mm); CUT L: 0.98" (~24.9mm); M COARSE: 10; M FINE: 12; FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.00mm; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.312" (~007.9mm); CUT L: 0.65" (~16.5mm); M FINE: 10; FLUTES: 4; GRADE: MT7;

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 32.00 TPI; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.312" (~007.9mm); CUT L: 0.74" (~18.8mm); FLUTES: 4; : (3/8); GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 24.00 TPI; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.312" (~007.9mm); CUT L: 0.81" (~20.6mm); UNF: (3/8); FLUTES: 4; : (9/16) - (5/8); GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.75mm; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.354" (~009.0mm); CUT L: 0.79" (~20.1mm); M COARSE: 12; M FINE: 12; FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 13.00 TPI; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.362" (~009.2mm); CUT L: 0.89" (~22.6mm); UNC: (1/2); FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.00mm; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.375" (~009.5mm); CUT L: 1.06" (~26.9mm); M COARSE: 14; M FINE: 15; FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.75mm; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.354" (~009.0mm); CUT L: 1.14" (~29.0mm); M COARSE: 12; M FINE: 12; FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.50mm; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.375" (~009.5mm); CUT L: 0.86" (~21.8mm); M FINE: 14; FLUTES: 4; GRADE: MT7;
