IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 08.00 TPI; SHANK D: 0.625"; OAL: 4.000" (101.00mm); CUT D: 0.625" (~015.9mm); CUT L: 1.69" (~42.9mm); UNC: 1; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 03.00mm; SHANK D: 0.625"; OAL: 4.5" (~114mm); CUT D: 0.625" (~015.9mm); CUT L: 2.31" (~58.7mm); M COARSE: 24; M FINE: 25; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.50mm; SHANK D: 0.625"; OAL: 4.000" (101.00mm); CUT D: 0.551" (~014.0mm); CUT L: 1.33" (~33.8mm); M COARSE: 20; M FINE: 22; FLUTES: 4; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.50mm; SHANK D: 0.625"; OAL: 4.000" (101.00mm); CUT D: 0.551" (~014.0mm); CUT L: 1.92" (~48.8mm); M COARSE: 20; M FINE: 22; FLUTES: 4; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 14.00 TPI; SHANK D: 0.625"; OAL: 4.000" (101.00mm); CUT D: 0.591" (~015.0mm); CUT L: 1.46" (~37.1mm); UNF: (7/8); FLUTES: 5; GRADE: MT7

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 12.00 TPI; SHANK D: 0.625"; OAL: 4.000" (101.00mm); CUT D: 0.625" (~015.9mm); CUT L: 1.63" (~41.4mm); UNF: 1 - 1(1/2); FLUTES: 5; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.50mm; SHANK D: 0.625"; OAL: 4.000" (101.00mm); CUT D: 0.625" (~015.9mm); CUT L: 1.33" (~33.8mm); M FINE: 20; FLUTES: 6; GRADE: MT7;

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 03.00mm; SHANK D: 0.750"; OAL: 4.000" (101.00mm); CUT D: 0.750" (~019.1mm); CUT L: 1.71" (~43.4mm); M COARSE: 27; M FINE: 28; FLUTES: 4; GRADE: MT7

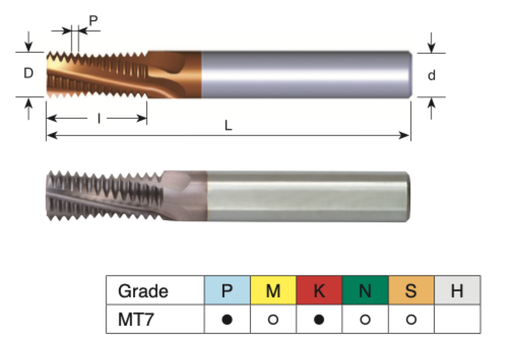

IN-SHANK W-OUT COOL FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 07.00 TPI; SHANK D: 0.750"; OAL: 4.000" (101.00mm); CUT D: 0.750" (~019.0mm); CUT L: 1.78" (~45.2mm); UNC: 1(1/8) - 1(1/4); FLUTES: 4; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.00mm; SHANK D: 0.750"; OAL: 4.000" (101.00mm); CUT D: 0.750" (~019.1mm); CUT L: 1.61" (~40.9mm); M FINE: 26; FLUTES: 6; GRADE: MT7;

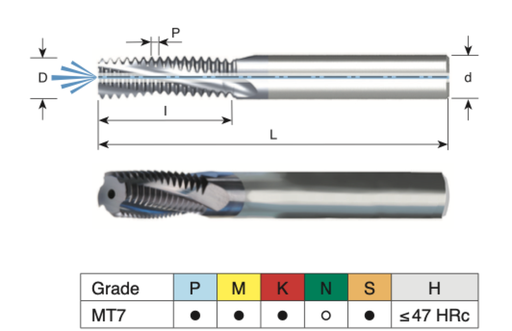

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.70mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.122" (~003.1mm); CUT L: 0.29" (~07.4mm); M COARSE: 4; M FINE: 5; FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 32.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.126" (~003.2mm); CUT L: 0.27" (~06.9mm); UNC: 8; UNF: 10; FLUTES: 3; : 12; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.80mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.150" (~003.8mm); CUT L: 0.36" (~09.1mm); M COARSE: 5; M FINE: 6; FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.50mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.150" (~003.8mm); CUT L: 0.41" (~10.4mm); M FINE: 5; FLUTES: 3; GRADE: MT7;

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.75mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.177" (~004.5mm); CUT L: 0.40" (~10.2mm); M FINE: 6; FLUTES: 3; GRADE: MT7;

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.00mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.181" (~004.6mm); CUT L: 0.41" (~10.4mm); M COARSE: 6; M FINE: 7; FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 20.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.185" (~004.7mm); CUT L: 0.48" (~12.2mm); UNC: (1/4); FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD; PITCH: 28.00 TPI; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.197" (~005.0mm); CUT L: 0.44" (~11.2mm); UNF: (1/4); FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.00mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.250" (~006.4mm); CUT L: 0.50" (~12.7mm); M FINE: 9; FLUTES: 3; GRADE: MT7;

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.25mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.249" (~006.3mm); CUT L: 0.57" (~14.5mm); M COARSE: 8; M FINE: 10; FLUTES: 3; GRADE: MT7
