SIR0375H11 STEEL 11IR* CARMEX

STEEL IN-SHANK HOLDER W-OUT COOL FOR INT-RH 11mm (1/4" I.C.) LAYDOWN INSERTS; SHANK D: 0.375"; OAL: 04.000" (~101.6mm); CUT D: 0.280" (~7.11mm); MN BORE: 0.470" (~11.94mm); SCRW: S11; KEY: K11; 1.5-DEG HELIX

$ 92.00 92.0 USD

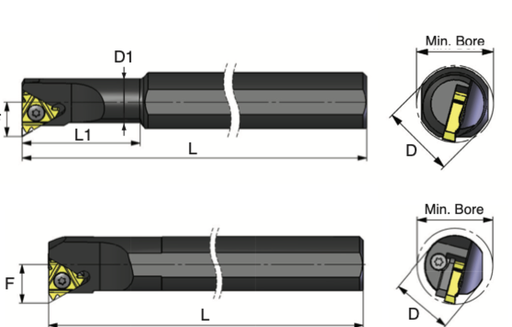

SIR0375K11 STEEL 11IR* CARMEX

STEEL IN-SHANK HOLDER W-OUT COOL FOR INT-RH 11mm (1/4" I.C.) LAYDOWN INSERTS; SHANK D: 0.625"; OAL: 05.000" (~127mm); NECK LEN: 1.000" (~25.4mm); CUT D: 0.280" (~7.11mm); MN BORE: 0.470" (~11.94mm); SCRW: S11; KEY: K11; 1.5-DEG HELIX

$ 101.00 101.0 USD

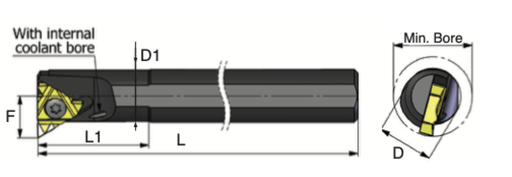

SIR0375K11B STEEL 11IR* COOLANT HOLE CARMEX

STEEL IN-SHANK HOLDER W-COOL BORE FOR INT-RH 11mm (1/4" I.C.) LAYDOWN INSERTS; SHANK D: 0.375"; OAL: 05.000" (~127mm); NECK LEN: 1.000" (~25.4mm); CUT D: 0.280" (~7.11mm); MN BORE: 0.470" (~11.94mm); SCRW: S11; KEY: K11; 1.5-DEG HELIX

$ 117.00 117.0 USD

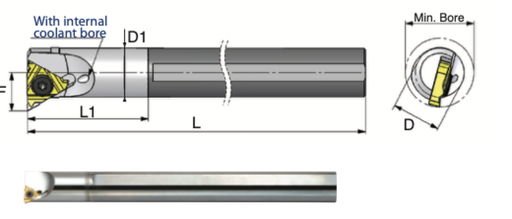

SIR0375M11CB CARBIDE 11IR* COOLANT HOLE CARMEX

CARBIDE IN-SHANK HOLDER W-COOL FOR INT-RH 11mm (1/4" I.C.) LAYDOWN INSERTS; SHANK D: 0.375"; OAL: 06.000" (~152.4mm); CUT D: 0.280" (~7.11mm); MN BORE: 0.470" (~11.94mm); SCRW: S11; KEY: K11; 1.5-DEG HELIX

$ 325.00 325.0 USD

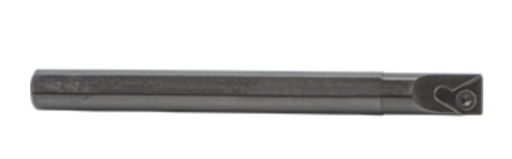

SIL0375H11 LEFT HAND

STEEL IN-SHANK HOLDER W-OUT COOL FOR INT-LH 11mm (1/4" I.C.) LAYDOWN INSERTS; SHANK D: 0.375"; OAL: 04.000" (~101.6mm); CUT D: 0.280" (~7.11mm); MN BORE: 0.470" (~11.94mm); SCRW: S11; KEY: K11; 1.5-DEG HELIX

$ 91.00 91.0 USD
