1. Products
2. THREADING HOLDERS
3. ID
4. MIN BORE DIA
5. .310

.310

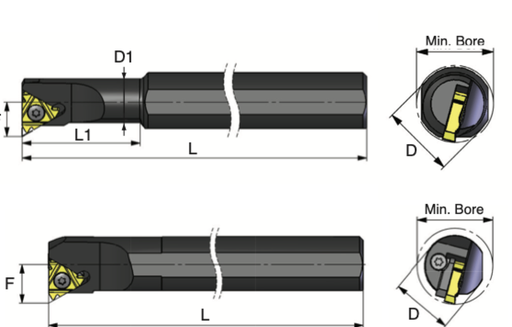

SIR0265K08 STEEL 08IR* CARMEX

STEEL IN-SHANK HOLDER W-OUT COOL FOR INT-RH 08mm (3/16" I.C.) LAYDOWN INSERTS; SHANK D: 0.625"; OAL: 05.000" (~127mm); NECK LEN: 0.700" (~17.78mm); CUT D: 0.210" (~5.33mm); MN BORE: 0.310" (~7.87mm); SCRW: S08; KEY: K08; 1.5-DEG HELIX

$ 94.00 94.0 USD

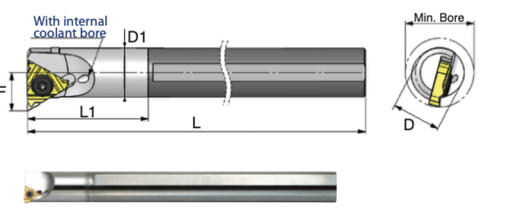

SIR0265K08CB CARBIDE 08IR* COOLANT HOLE CARMEX

CARBIDE IN-SHANK HOLDER W-COOL FOR INT-RH 08mm (3/16" I.C.) LAYDOWN INSERTS; SHANK D: 0.265"; OAL: 05.000" (~127mm); NECK LEN: 1.220" (~30.99mm); CUT D: 0.210" (~5.33mm); MN BORE: 0.310" (~7.87mm); SCRW: S08; KEY: K08; 1.5-DEG HELIX

$ 246.00 246.0 USD
