STEEL IN-SHANK HOLDER W-OUT COOL FOR INT-RH 06mm (5/32" I.C.) LAYDOWN INSERTS; SHANK D: 0..500"; OAL: 04.000" (~101.6mm); NECK LEN: 0.470" (~11.94mm); CUT D: 0.170" (~4.32mm); MN BORE: 0.240" (~6.1mm); SCRW: S06; KEY: K06; 1.5-DEG HELIX

CARBIDE IN-SHANK HOLDER W-COOL FOR INT-RH 06mm (5/32" I.C.) LAYDOWN INSERTS; SHANK D: 0.205"; OAL: 04.000" (~101.6mm); NECK LEN: 1.020" (~25.91mm); CUT D: 0.170" (~4.32mm); MN BORE: 0.240" (~6.1mm); SCRW: S06; KEY: K06; 1.5-DEG HELIX

STEEL IN-SHANK HOLDER W-OUT COOL FOR INT-RH 08mm (3/16" I.C.) LAYDOWN INSERTS; SHANK D: 0.625"; OAL: 05.000" (~127mm); NECK LEN: 0.700" (~17.78mm); CUT D: 0.210" (~5.33mm); MN BORE: 0.310" (~7.87mm); SCRW: S08; KEY: K08; 1.5-DEG HELIX

CARBIDE IN-SHANK HOLDER W-COOL FOR INT-RH 08mm (3/16" I.C.) LAYDOWN INSERTS; SHANK D: 0.265"; OAL: 05.000" (~127mm); NECK LEN: 1.220" (~30.99mm); CUT D: 0.210" (~5.33mm); MN BORE: 0.310" (~7.87mm); SCRW: S08; KEY: K08; 1.5-DEG HELIX

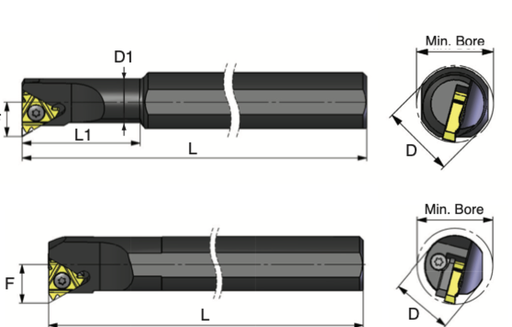

STEEL IN-SHANK HOLDER W-OUT COOL FOR INT-RH 11mm (1/4" I.C.) LAYDOWN INSERTS; SHANK D: 0.375"; OAL: 04.000" (~101.6mm); CUT D: 0.280" (~7.11mm); MN BORE: 0.470" (~11.94mm); SCRW: S11; KEY: K11; 1.5-DEG HELIX

STEEL IN-SHANK HOLDER W-OUT COOL FOR INT-RH 11mm (1/4" I.C.) LAYDOWN INSERTS; SHANK D: 0.625"; OAL: 05.000" (~127mm); NECK LEN: 1.000" (~25.4mm); CUT D: 0.280" (~7.11mm); MN BORE: 0.470" (~11.94mm); SCRW: S11; KEY: K11; 1.5-DEG HELIX

STEEL IN-SHANK HOLDER W-COOL BORE FOR INT-RH 11mm (1/4" I.C.) LAYDOWN INSERTS; SHANK D: 0.375"; OAL: 05.000" (~127mm); NECK LEN: 1.000" (~25.4mm); CUT D: 0.280" (~7.11mm); MN BORE: 0.470" (~11.94mm); SCRW: S11; KEY: K11; 1.5-DEG HELIX

CARBIDE IN-SHANK HOLDER W-COOL FOR INT-RH 11mm (1/4" I.C.) LAYDOWN INSERTS; SHANK D: 0.375"; OAL: 06.000" (~152.4mm); CUT D: 0.280" (~7.11mm); MN BORE: 0.470" (~11.94mm); SCRW: S11; KEY: K11; 1.5-DEG HELIX

STEEL IN-SHANK HOLDER W-OUT COOL FOR INT-RH 11mm (1/4" I.C.) LAYDOWN INSERTS; SHANK D: 0.625"; OAL: 05.500" (~139.7mm); NECK LEN: 1.250" (~31.75mm); CUT D: 0.340" (~8.64mm); MN BORE: 0.580" (~14.73mm); SCRW: S11; KEY: K11; 1.5-DEG HELIX

STEEL IN-SHANK HOLDER W-OUT COOL FOR INT-RH 16mm (3/8" I.C.) LAYDOWN INSERTS; SHANK D: 0.625"; OAL: 06.000" (~152.4mm); NECK LEN: 1.250" (~31.75mm); CUT D: 0.390" (~9.91mm); MN BORE: 0.640" (~16.26mm); SCRW: S16S; KEY: K16; 1.5-DEG HELIX

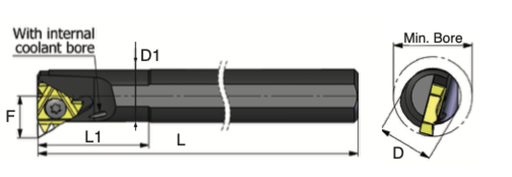

STEEL IN-SHANK HOLDER W-COOL BORE FOR INT-RH 16mm (3/8" I.C.) LAYDOWN INSERTS; SHANK D: 0.620"; OAL: 06.000" (~152.4mm); NECK LEN: 1.250" (~31.75mm); CUT D: 0.390" (~9.91mm); MN BORE: 0.640" (~16.26mm); SCRW: S16S; KEY: K16; 1.5-DEG HELIX

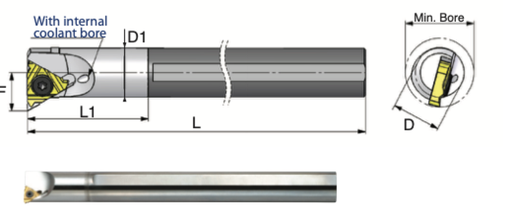

CARBIDE IN-SHANK HOLDER W-COOL FOR INT-RH 11mm (1/4" I.C.) LAYDOWN INSERTS; SHANK D: 0.500"; OAL: 07.000" (~177.8mm); CUT D: 0.340" (~8.64mm); MN BORE: 0.580" (~14.73mm); SCRW: S11; KEY: K11; 1.5-DEG HELIX

CARBIDE IN-SHANK HOLDER W-COOL FOR INT-RH 16mm (3/8" I.C.) LAYDOWN INSERTS; SHANK D: 0.500"; OAL: 07.000" (~177.8mm); CUT D: 0.400" (~10.16mm); MN BORE: 0.640" (~16.26mm); SCRW: S16S; KEY: K16; 1.5-DEG HELIX

STEEL IN-SHANK HOLDER W-OUT COOL FOR INT-RH 16mm (3/8" I.C.) LAYDOWN INSERTS; SHANK D: 0.750"; OAL: 07.000" (~177.8mm); NECK LEN: 1.570" (~39.88mm); CUT D: 0.450" (~11.43mm); MN BORE: 0.750" (~19.05mm); SCRW: S16S; KEY: K16; 1.5-DEG HELIX

STEEL IN-SHANK HOLDER W-COOL BORE FOR INT-RH 16mm (3/8" I.C.) LAYDOWN INSERTS; SHANK D: 0.625"; OAL: 07.000" (~177.8mm); NECK LEN: 1.570" (~39.88mm); CUT D: 0.450" (~11.43mm); MN BORE: 0.750" (~19.05mm); SCRW: S16S; KEY: K16; 1.5-DEG HELIX

CARBIDE IN-SHANK HOLDER W-COOL FOR INT-RH 16mm (3/8" I.C.) LAYDOWN INSERTS; SHANK D: 0.625"; OAL: 08.000" (~203.2mm); CUT D: 0.460" (~11.68mm); MN BORE: 0.750" (~19.05mm); SCRW: S16S; KEY: K16; 1.5-DEG HELIX

STEEL IN-SHANK HOLDER W-OUT COOL FOR INT-RH 16mm (3/8" I.C.) LAYDOWN INSERTS; SHANK D: 0.750"; OAL: 07.000" (~177.8mm); CUT D: 0.510" (~12.95mm); MN BORE: 0.900" (~22.86mm); SCRW: S16; ANV/SCRW: AI16/A16; KEY: K16; 1.5-DEG HELIX

STEEL IN-SHANK HOLDER W-COOL BORE FOR INT-RH 16mm (3/8" I.C.) LAYDOWN INSERTS; SHANK D: 0.750"; OAL: 07.000" (~177.8mm); CUT D: 0.510" (~12.95mm); MN BORE: 0.900" (~22.86mm); SCRW: S16; ANV/SCRW: AI16/A16; KEY: K16; 1.5-DEG HELIX

STEEL IN-SHANK HOLDER W-OUT COOL FOR INT-RH 22mm (1/2" I.C.) LAYDOWN INSERTS; SHANK D: 0.750"; OAL: 07.000" (~177.8mm); CUT D: 0.590" (~14.99mm); MN BORE: 0.900" (~22.86mm); SCRW: S22S; KEY: K22; 1.5-DEG HELIX

CARBIDE IN-SHANK HOLDER W-COOL FOR INT-RH 16mm (3/8" I.C.) LAYDOWN INSERTS; SHANK D: 0.750"; OAL: 10.000" (~254mm); CUT D: 0.540" (~13.72mm); MN BORE: 0.900" (~22.86mm); SCRW: S16; ANV/SCRW: AI16/A16; KEY: K16; 1.5-DEG HELIX
