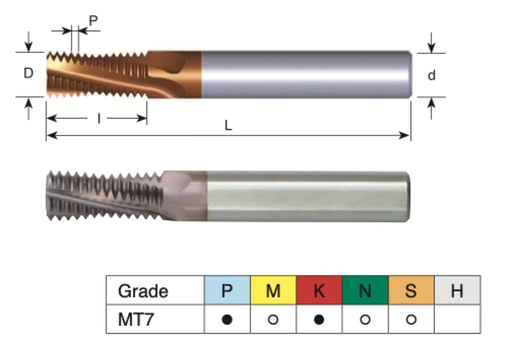

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.00mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.236" (~006.0mm); CUT L: 0.49" (~12.4mm); M FINE: 9; FLUTES: 3; GRADE: MT7;

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.00mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.157" (~004.0mm); CUT L: 0.41" (~10.4mm); M COARSE: 6; M FINE: 7; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.80mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.142" (~003.6mm); CUT L: 0.36" (~09.1mm); M COARSE: 5; M FINE: 6; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.75mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.177" (~004.5mm); CUT L: 0.40" (~10.2mm); M FINE: 6; FLUTES: 3; GRADE: MT7;

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.50mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.150" (~003.8mm); CUT L: 0.41" (~10.4mm); M FINE: 5; FLUTES: 3; GRADE: MT7;

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.70mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.122" (~003.1mm); CUT L: 0.29" (~07.4mm); M COARSE: 4; M FINE: 5; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 00.50mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.087" (~002.21mm); CUT L: 0.21" (05.3mm); M COARSE: 3; M FINE: 4; FLUTES: 3; GRADE: MT7

MET-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.00mm; SHANK D: 12.00mm; OAL: 105.00mm (4.1"); NECK LEN: ~50.0mm (01.97"); CUT D: ~011.8mm (0.465"); M COARSE: M16; M FINE: M18,M20; FLUTES: 4; : 3xD1; GRADE: MT7

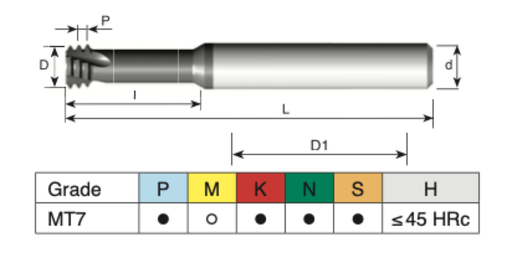

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.00mm; SHANK D: 0.500"; OAL: 3.5" (089.00mm); NECK LEN: 01.38" (~35.1mm); CUT D: 0.465" (~011.8mm); M COARSE: M16; M FINE: M18,M20; FLUTES: 4; : 2xD1; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.00mm; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.312" (~007.9mm); CUT L: 0.65" (~16.5mm); M FINE: 10; FLUTES: 4; GRADE: MT7;

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.50mm; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.306" (~007.8mm); CUT L: 0.67" (~17.0mm); M COARSE: 10; M FINE: 12; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.00mm; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.313" (~008.0mm); CUT L: 0.65" (~16.5mm); M FINE: 10; FLUTES: 4; GRADE: MT7;

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.75mm; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.313" (~008.0mm); CUT L: 0.79" (~20.1mm); M COARSE: 12; M FINE: 14; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.50mm; SHANK D: 0.312"; OAL: 2.5" (064.00mm); CUT D: 0.276" (~007.0mm); CUT L: 0.68" (~17.3mm); M COARSE: 0; M FINE: 12; FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.50mm; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.375" (~009.5mm); CUT L: 0.86" (~21.8mm); M FINE: 14; FLUTES: 4; GRADE: MT7;

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.00mm; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.375" (~009.5mm); CUT L: 1.06" (~26.9mm); M COARSE: 14; M FINE: 15; FLUTES: 3; GRADE: MT7

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.75mm; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.354" (~009.0mm); CUT L: 0.79" (~20.1mm); M COARSE: 12; M FINE: 12; FLUTES: 3; GRADE: MT7

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.50mm; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.375" (~009.5mm); CUT L: 0.86" (~21.8mm); M FINE: 14; FLUTES: 4; GRADE: MT7;

IN-SHANK W-OUT COOL FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 02.00mm; SHANK D: 0.325"; OAL: 3.000" (076.00mm); CUT D: 0.375" (~009.5mm); CUT L: 1.06" (~26.9mm); M COARSE: 16; M FINE: 17; FLUTES: 3; GRADE: MT7

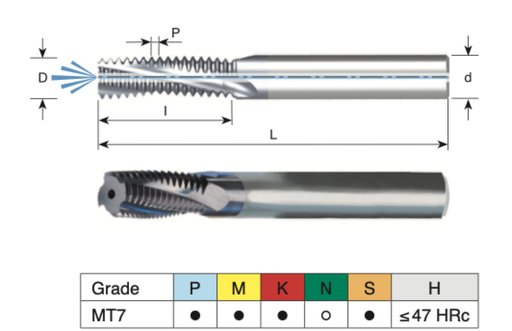

IN-SHANK W-COOL BORE FOR ISO (METRIC) INT-RH&LH THREAD; PITCH: 01.25mm; SHANK D: 0.250"; OAL: 2.5" (064.00mm); CUT D: 0.249" (~006.3mm); CUT L: 0.76" (~19.3mm); M COARSE: 8; M FINE: 10; FLUTES: 3; GRADE: MT7
